What Makes This System Unique

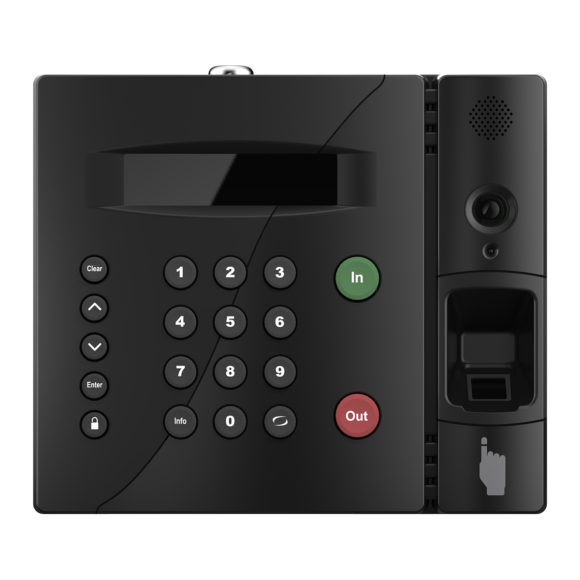

The LT-3000b was designed to communicate directly with web based applications, sending punch data in real-time or prescribed intervals.
Push Technology
The LT-3000b terminal software was developed to communicate directly with web applications using push technology. This ‘push’ terminal sends its data to the web service in real-time, meaning your data is always up to date. If connection to the service is lost the terminal holds its data until connection is re-established. Using push technology means you will have significantly less setup configuration versus traditional poll technology.
Linux Operating System
The rich and powerful Linux Operating System provides you with access to thousands of free applications, tools and utilities to use for terminal customization and make integration easy.
Light-years ahead of the market in functionality and price!
Icon Time is here to make sure that the integration process goes as smooth and quickly as possible. Providing support, answering questions that you may have, and giving advice on the simplest ways to integrate your application with the LT-3000b Data Collection Terminal and integration with hardware add-ons.
Workforce Management Features:
-
- Real-time Data Transfer
- Linux Operating System
- Heavy Duty Case and Keypad for High Usage
- Fully Programmable Configuration
- Stores 300,000+ Transactions
- Fingerprint, Keypad (PIN) or RFID Proximity Badge entry
- Ethernet, Wi-Fi and USB Connection
- Low Voltage Power Supply (9V DC)
Advanced Features
Communication Options
Standard with Ethernet and serial connection, the LT-3000b terminal also has a cellular and dialup modem option for remote setup when standard Internet connection is not available.
Entry Options
This robust terminal comes standard with fingerprint*, keypad PIN and RFID Proximity badge entry; for those needing alternative badge entry options simply add on the magnetic swipe or barcode reader.
LT3000b Programming Language
The LT-3000b was developed with its own programming language, Custom Clock User Interface Script (CUI script) this programming language was designed to make development and integration simple yet flexible. This unique software integrates all entry methods, the ability to display data to the user, audio buzzer, and accessing an internal database easily without any C code. For those looking for the ultimate flexibility, standard Linux compilers run effortlessly.
Development Tools
The Software Development Kit (SDK) for the LT-3000b is designed to allow custom creation of the data collection terminal interface, providing you with the tools that you need to succeed; develop using CUI Script, Linux Shell Scripts or C Code for advanced programmers.
*During finger scan enrollment, unique points are referenced on an employee’s finger and an algorithm converts these points into a mathematical template made up of 1s and 0s. It does not collect, store, or transmit an employee’s fingerprint nor can it be reverse-engineered into one.
Technical Specifications
Part Number: |
LT3000b |
Measurements |
9 1/4″ wide 1 3/4″ deep 8″ high |
Weight: |
1.7 lbs |
Operating System: |
Linux 2.6.81 |
Database: |
SQLite v. 3.3.13 |
Web Application: |
GNU Wget 1.10.2 |
Processor: |
32 Bit |
Display: |
16×2 Blue LCD |
RAM: |
512 MB |
Flash Memory: |
4 GB |
Keypad: |
19 Button |
Power: |
9V/DC |
Environment: |
Operating: 32°F to 113°F Relative Humidity 5% to 95% Non-operating (storage): 14°F to 114°F |
Standard: |
RFID Proximity Card |
Entry Options: |
PIN Entry |
Standard: |
Serial |
Communication: |
Ethernet – Dial up Modem (specific models) |
Atd On Communication: |
Cellular Modem (specific models) |
Options |
|
Entry Options: |
|
| Magnetic Swipe (USB) Barcode Swipe (USB) PROX and Keypad PIN |
